- Size: 12.5x12.5x12.5
- Place of Origin: China
- Brand Name: Jovision
- Model Number: JVS-N83-HY
- Weight: 0.500 kg

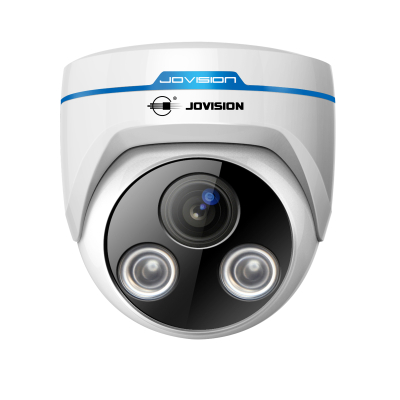

1/2.7” 2.0MP CMOS
1080p@30fps
Triple Streams
Smart IR Range Up to 25m(82ft)
Low Bitrate, Excellent low light performance
3D DNR
ROI, Defog, HLC, Corridor mode
CloudSEE Embedded
- Size: 12.5x12.5x12.5
- Place of Origin: China
- Brand Name: Jovision
- Model Number: JVS-N83-HY
- Weight: 0.500 kg
CAMERA | |
Image Sensor | 1/2.7” 2.0MP CMOS |
Max Resolution | 1920x1080@30fps |
Bit Rate (CBR/VBR) | Main Stream:128kbps-10Mbps; |
Min. illumination | 0 lux with IR ON |
Digital Noise Reduction | 3D DNR |
Lens Mount | M12 |
Lens | 4mm (F2.0) |
Angle of view | H: 79.6°, V: 47.7°, D: 97.8° |
Day & Night | IR cut filter with auto switch |
IR LED | 2Pcs Array LED Up to 25m (82ft ). |
Audio Compression | G.711a / G.711u |
IMAGE | |
Video Compression | H.264 |
Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
BLC | Yes |
9:16 Corridor mode | Yes |
AWB | Yes |
ROI | Yes |
Defog | Yes |
Network | |
Network Protocols | HTTP, TCP/IP, RTSP, ICMP, RTP, UDP, RTCP, SMTP, DHCP, DNS, CloudSEE. |
Alarm Trigger | Motion Detection |
Security | User security authentication, Reset, Hardware Watch Dog |
Web Language | Chinese, English, German |
System Compatibility | ONVIF 2.4 |
Browser | IE8 , Chrome18 ~ 42- |
INTERFACE | |
Ethernet | 1 RJ-45 10/100Mbps self-adaptive Ethernet interface |
Audio I/O | 1Ch Audio In |
General | |
Material | Plastic |
Power Supply | DC12V/2A |
Power Consumption | 3W (During day) ；6W（At night with IR） |
Operating Temperature | -100C- 500C |
Operating Humidity | 0% - 90% Rh Non-Condensation |
Dimensions | 103×99mm (4.06” ×3.90”) |
Weight | 450g |
