- Size: 25.5x12.3x10.3
- Place of Origin: China
- Brand Name: Jovision

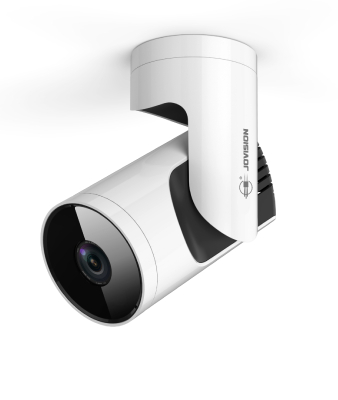

- Model Number: JVS-N81-KZ
1/2.7” 2.0MP CMOS
1080p@30fps
Triple Streams
Smart IR Range Up to 25m(82ft)
Low Bitrate, Excellent low light performance
3D DNR
ROI, Defog, HLC, Corridor mode
CloudSEE Embedded
- Size: 25.5x12.3x10.3
- Place of Origin: China
- Brand Name: Jovision
- Model Number: JVS-N81-KZ
CAMERA | |
Image Sensor | 1/2.7” 2.0MP CMOS |
Max Resolution | 1920x1080@30fps |
Bit Rate (CBR/VBR) | 204kbps-8Mbps; |
Min. illumination | 0 lux with IR ON |
Digital Noise Reduction | 3D DNR |
Lens Mount | M12 |
Lens | 4mm (F2.0) |
Angle of view | H: 75.6°, V: 47.7°, D: 97.8° |
IR LED | 2Pcs Array LED Up to 25m (82ft ). |
Audio Compression | G.711 a / G.711u |
IMAGE | |
Video Compression | H.264 |
Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
HLC | Yes |
9:16 Corridor mode | Yes |
DIS | Auto |
ROI | Yes |
Defog | Yes |
NETWORK | |
Network Protocols: | HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, DHCP, DNS, CloudSEE. |
Alarm Trigger | Motion Detection |
RTSP Video | Standard RFC2326, Support QuickTime / VLC Player. |
Security | User security authentication, Reset, Hardware Watch Dog |
Web Language | English, Chinese, German |
System Compatibility | ONVIF 2.4 |
Browser | IE8 , Chrome18 ~ 42- |
NTERFACE | |
Ethernet | 1 RJ45 10M / 100M Ethernet |
Audio I/O | 1ch Audio In |
BNC Output | Not Support |
Reset Button | Not Support |
Edge Storage | Not Support |
General | |
Material | Plastic |
Power Supply | DC12V/PoE IEEE802.3af |
Power Consumption | 3W (During day) ；6W（At night with IR） |
Operating Temperature | -100C- 500C |
Operating Humidity | 0% - 90% Rh Non-Condensation |
Dimensions | φ76×177mm, (φ3” ×7”) |
Weight | 480g |
