- Size: 11.1x9.6x15.9
- Place of Origin: China
- Brand Name: Jovision
- Model Number: JVS-HA230E
- Weight: 0.450 kg

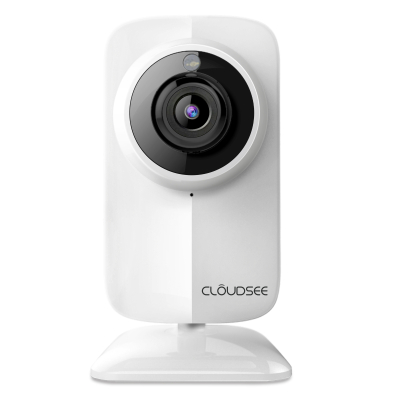

Resolution 1920x1080.
With IR LED Lights and IR-CUT, monitoring day and night.
Supports smartphone remote viewing
Supports two-way talk
Wi-Fi IEEE802.11b/g/n
Support 128GB SD Card
- Size: 11.1x9.6x15.9
- Place of Origin: China
- Brand Name: Jovision
- Model Number: JVS-HA230E
- Weight: 0.450 kg
Video | |
Image Sensor | 1/2.7” 2.0MP CMOS |
Max Resolution | Up to 1920×1080 |
Effective Pixels | 2.0 MP |
Compression Standard | H.264 |
Maximum Frame Rate | Up to 15 fps |
Bitrate | 40Kbps～6Mbps |
Illumination | 0Lux (IR ON) |
Lens | |
Interface Type | M12 |
Lens | Fixed 4mm |
Viewing Angle | H: 87.4°, V: 47°, D: 104° |
Focusing System | Fixed |
Function | |
Privacy Masking | Supports 4 zone masking |
Exposure Mode | Auto |
Automatic Gain Control | Auto |
White Balance | Auto |
Motion Detection | Support |
Day-Night Vision | IR-CUT, Supports color/black switch |
Remote Control | System Management, Stream Management, Alarm Management, Network Management. |
Detection Alarm | E-mail Alert, Client-end Alarm |
Two-way Talk | Support |
Storage | Up to 128GB |
Interface | |
Audio Input | 1 Channel Internal MIC (Built-In) |
Audio Output | 1 Channel Internal Speaker (Built-In) |
Ethernet | 10M/100M, RJ45 |
TF Card | Support |
Network | |
Wi-Fi | Wi-Fi(IEEE802.11b/g/n) |
Stream | Dual stream |
Protocols | TCP/IP, ICMP, UDP, SMTP, DHCP, DNS, PPPoE |
General | |
Network Transmission | Embedded with CloudSEE P2P Transmission Protocol |
IR Light | 10 pcs LED Lights |
IR Distance | Up to 10 Meter |
Humidity | Rh 10%～90% |
Working Temperature | -100C～550C |
Power Supply | DC5V/1A |
Consumption | ≦4W |
Color/Material | White/ABS PC |
Dimension(WxHxD) | 78×120×72.9 (mm) |
Weight(g) | 130 |
Installation | Wall, Ceiling, Desktop |
