- Size: 30.0x23.6x10.0
- Place of Origin: China
- Brand Name: Jovision
- Model Number: JVS-VN7004/08-D01
- Weight: 1.350 kg

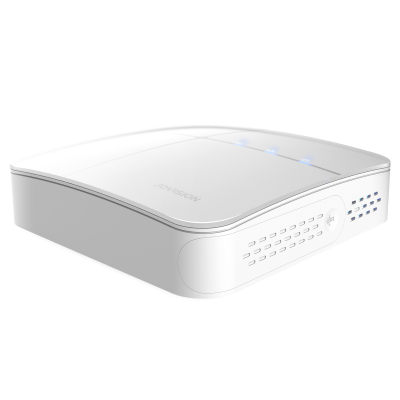

Elegant appearance with Acrylic body panel.
Full HD 1080p Video output
HDD Tray for direct plug without dismantling the chassis
Supports 2.0Mega Pixel Full HD Video
H.264 Video Compression
Supports smart detection like Intrusion, motion, video block etc.
Supports Time Lapse Video Playback
CloudSEE Embedded
- Size: 30.0x23.6x10.0
- Place of Origin: China
- Brand Name: Jovision
- Model Number: JVS-VN7004/08-D01
- Weight: 1.350 kg
Model | JVS-VN7004-D01 | JVS-VN7008-D01 |
VIDEO/AUDIO INPUT | ||
Video Input | 4-Ch 1.0MP/ 1.3MP/ 2.0MP | 8-Ch 1.0MP/ 1.3MP/ 2.0MP |
Incoming Bandwidth | 20Mbps | 40Mbps |
Audio Input | 1-Ch G.711a / G.711u | |
VIDEO/AUDIO OUTPUT | ||
Recording Resolution | 1.0MP/1.3MP/2.0MP | |
Playback | 2-Ch 1080p/ 4-Ch 960p/ 4-Ch720p | |
HDMI Output | 1-Ch, Resolution:1920×1080/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×800/60Hz, 1024×768/60Hz | |
VGA Output | 1-Ch, Resolution:1920×1080/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×800/60Hz, 1024×768/60Hz | |
Playback Mode | Time List & Event Playback | |
Audio Output | 1-Ch G.711a / G.711u | |
HARD DISK | ||
SATA HDD | 1 SATA Interface 3.5'' | |
Mounting Mode | Direct plug | |
Capacity | Up to 6TB | |
NETWORK | ||
Network Protocols | TCP/IP, UDP/IP, CloudSEE, SMTP, NTP, DHCP | |
Ethernet | 1RJ-45 10/100Mbps self-adaptive Ethernet interface | |
INTERFACE | ||
HDMI/VGA | 1 Port HDMI, 1 Port VGA | |
USB | 2x USB 2.0 | |
Alarm I&O | N / A | |
Serial Port | 1 x RS485 | |
Browser | IE8 , Chrome18 ~ 42- | |
Security | User security authentication, Reset, Hardware Watch Dog | |
Web Language | English, German | |
System Compatibility | ONVIF 2.4 | |
GENERAL | ||
Material | Acrylic & Metal | |
Power Supply | DC12V / 2A | |
Power Consumption | ≤15W（Without HDD） | |
Operating Temperature | -10°C - 55°C | |
Operating Humidity | 0% - 90% Rh Non-Condensation | |
Dimensions W×D×H | 200×200×56mm | |
Weight | ≤700g | |
